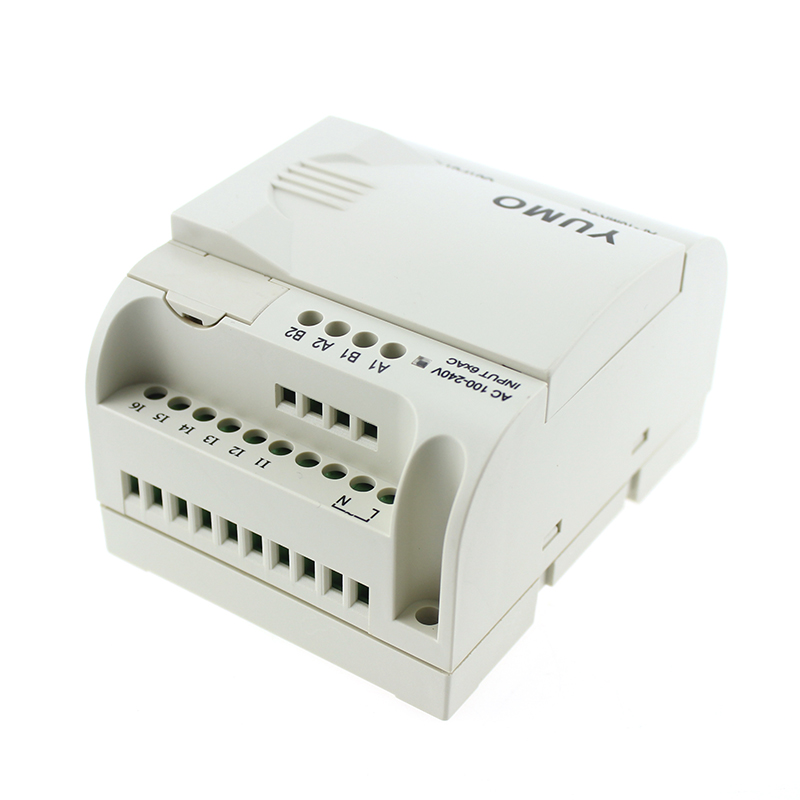

AF-10MR-A2 Programmable Logic Controller plc controller PLC

DC power supply, with 6 points DC input (analog), 4 points relay output PLC

online service

Tel:0086-15356229951

Email: sale@yingselectric.com

Skype: benjaminying

PDF Download
Inquiry
The previous
Next

DC power supply, with 6 points DC input (analog), 4 points relay output PLC:

Performance&Features
This model is a DC power supply, with 6 points DC input (analog), 4 points relay output
Exquisite and compact design
Multi-functional, easy operating, convenient, easy learning
Technical Index
Operation temperature： ：-20℃-70℃ Timers ：127
Storage/Transportation -40℃-70℃ Counters ：127
Protection：IP20 Function blocks : 127
Interference Regulation: EN55011(B Class) RTC time intervals：127
RTC accuracy: MAX ±5S/day Storage capacity：64K
Certificate：CE Insulation Intensity: IEC1131
Installation: Use a standard DIN rail or screw for installation Dimensions90*71*58 （Unit：mm ）


Power supply
Rated voltage： DC12/24V Main voltage operation range：DC10-28V
(Output full-load)：Typical 3W


Digital input
Signal 0：DC 0-5V Input current：<0.4mA
Signal 1：DC 10-24V Input current：<1mA


Analogue input
Signal 1： 0-10V Resistor load： 2Hz Inductive load： 0.5Hz


Digital output
Output type: Relay output Wiring insulation: Yes
Points per set：1 Continuous current max value：MAX 10A


Switch frequency
Mechanism： 10Hz Resistor load： 2Hz
Inductive load： 0.5Hz


FAB Intelligent Controller Series is a new programmable controller launched by YUMO, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of YUMO FAB series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. YUMO FAB is very compact and light-weighted, especially suitable for internal installation usage.

In addition, FAB intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the YUMO FAB is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere
Powerful Network Function
Short distance network wiring (Within 1.2KM)
