IHA5208 Outer Diameter60mm Hollow Shaft Rotary Encoder
online service
IHA5208 Outer Diameter60mm Hollow Shaft Rotary Encoder
Features
● Miniature size, easy assembling
● 2 quadrature output channel (A&B) + index
signal
● Housing size: 52mm, shaft dia: 8mm
● Resolution up to 3600 cpr
· Model: IHA5208
· Brand: YUMO
· Code: YM0000008
|
Ordering code |
||||||
|
IHA5208 |
001 |
G |
360 |
ABZ |
5 |
24C |
|
Series |
Sequence Number |
Connection |
Number of pulses |
Output signals |
supply voltage |
output circuit |
Note
1, Please contact sales representative
to confirm the correctness and availability of the part number
2, Line Driver is only available with 5-30V DC option
Technical Specifications
|
Parameter |
Value |
Note |
|
Supply Voltage |
DC5-30V (±10%) |
Max. response frequency is gated by max. rotation speed |
|
Max. Response Frequency |
100 kHz |
|
|
Max. Rotation Speed (*1) |
3000 rpm |
|
|
Max. Current Consumption |
120mA (Unloaded) |
|
|
Max. Rise-Fall Time |
200ns (Line Driver) |
|
|
Max. Rise-Fall Time |
1us (Other Output Mode) |
|
|
Operating Temperature |
-20 ~ 85° C (unfrozen) |
|
|
Storage Temperature |
-20 ~ 85° C (unfrozen) |
|
|
IP Rating |
IP54 |
|
Connection Table
|
Signal |
A |
B |
Z |
Ā |
B(-) |
Z(-) |
Vcc |
GND |
|
Color |
Green |
White |
Yellow |
Brown |
Gray |
Orange |
Red |
Black |
Dimension

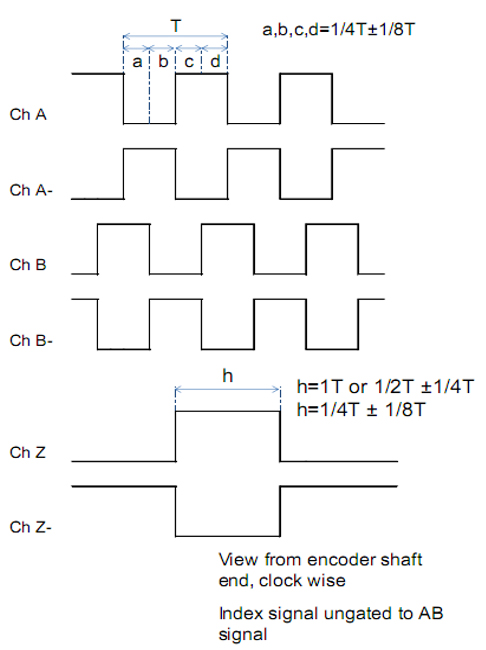

Output Waveform
