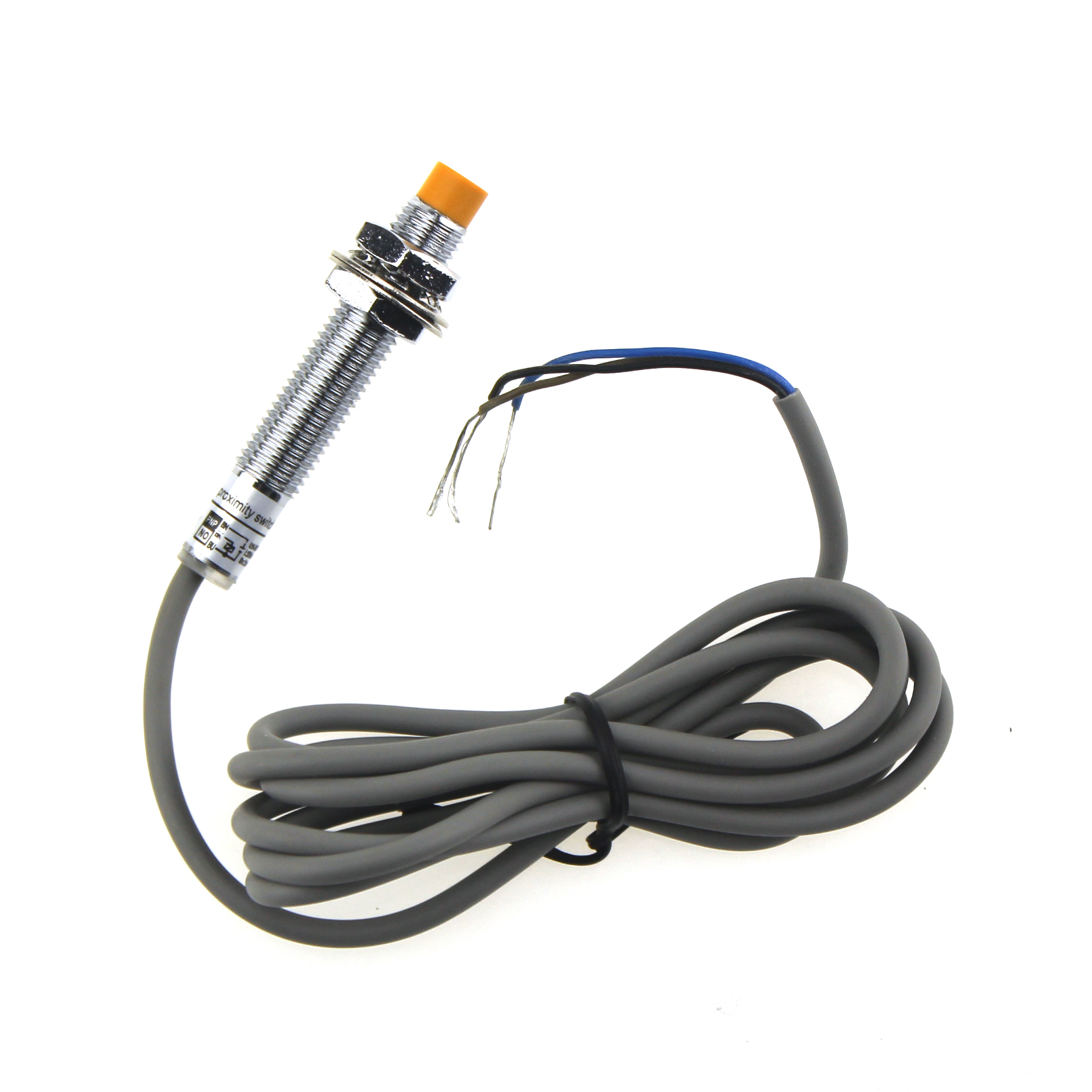

LJ8A3-2-Z/BY detection distance 2mm inductive proximity switch
Proximity switches is the most common solution for non-contact detection. And the inductive type is the widely used proximity switches, which is through the electromagnetic waves to detect the metal abject near the sensor detection surface. In application , this is a very simple technology to detect 1”~2”metal object . YUMO Electric offer different series proximity sensor , that included inductive, photoelectrical, capacitive and etc. YUMO Electric continues to improve the performance and quality , enabling the sensors in a world-class level . If you are searching for proximity switch , China YUMO will be your best choice .
online service
LJ8A3-2-Z/BY detection distance 2mm inductive proximity switch
Diameter 8mm cylinder inductive proximity switch , sensing range from 1mm~2mm . Also offer customized design .
Detecting rang 1mm | YUMO part no. | other part no. | Omron part no. | |||
Flush | DC | NPN | NO | LM8-3001NA | LJ8A3-1-Z/BX | E2E-X1R5E1 |
6~ 36V | NC | LM8-3001NB | LJ8A3-1-Z/AX | E2E-X1R5E2 | ||
|
NO+NC | - | - |
|
||
|
PNP | NO | LM8-3001PA | LJ8A3-1-Z/BY | E2E-X1R5F1 | |
|
NC | LM8-3001PB | LJ8A3-1-Z/AY | E2E-X1R5F2 | ||
|
NO+NC | - | - |
|
||
|
2 Wires | NO | LM8-3001LA | LJ8A3-1-Z/EX |
|
|
|
NC | LM8-3001LB | LJ8A3-1-Z/DX |
|
||
AC | SCR | NO | LM8-2001A | LJ8A3-1-J/EZ | E2E-X1R5Y1 | |
NC | LM8-2001B | LJ8A3-1-J/DZ | E2E-X1R5Y2 | |||
|
NO+NC |
|
|
|
||
Relay output |
|
|
|
|||
Detecting rang 1.5/2mm | ||||||
Non-flush | DC | NPN | NO | LM8-3002NA | LJ8A3-2-Z/BX | E2E-X2ME1 |
6~ 36V | NC | LM8-3002NB | LJ8A3-2-Z/AX | E2E-X2ME2 | ||
|
NO+NC | - |
|
|
||
|
PNP | NO | LM8-3002PA | LJ8A3-2-Z/BY | E2E-X2MF1 | |
|
NC | LM8-3002PB | LJ8A3-2-Z/AY | E2E-X2MF2 | ||
|
NO+NC | - |
|
|
||
|
2 Wires | NO | LM8-3002LA | LJ8A3-2-Z/EX | E2E-X1D1 | |
|
NC | LM8-3002LB | LJ8A3-2-Z/DX | E2E-X2MD1 | ||
AC | SCR | NO | LM8-2002A | LJ8A3-2-J/EZ | E2E-X2MY1 | |
|
NC | LM8-2002B | LJ8A3-2-J/DZ | E2E-X2MY2 | ||
90~250V |
|
NO+NC |
|
|
|
|
|
Relay output |
|
||||
Sensor Characteristics | ||||||
Output current | DC | 150mA | ||||
SCR/relay |
|
|||||
Output voltage drop | DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10V | |||||
Consumption current | DC(NPN;PNP) DC 12V 8mA;24V15mA;AC type: AC<10mA | |||||
Standard detected object | 8×8×1(A3 Iron) | |||||
Repeated precision | 0.01 | |||||
Response Frequency | 500Hz/25Hz | |||||
Working environment temperature | -25℃ ~+75℃ | |||||
Insulation resistance | ≥50MΩ | |||||
Shell material | Metal | |||||
Protection grade | IP67 | |||||
Alternative model | E2E-X1R5 |
