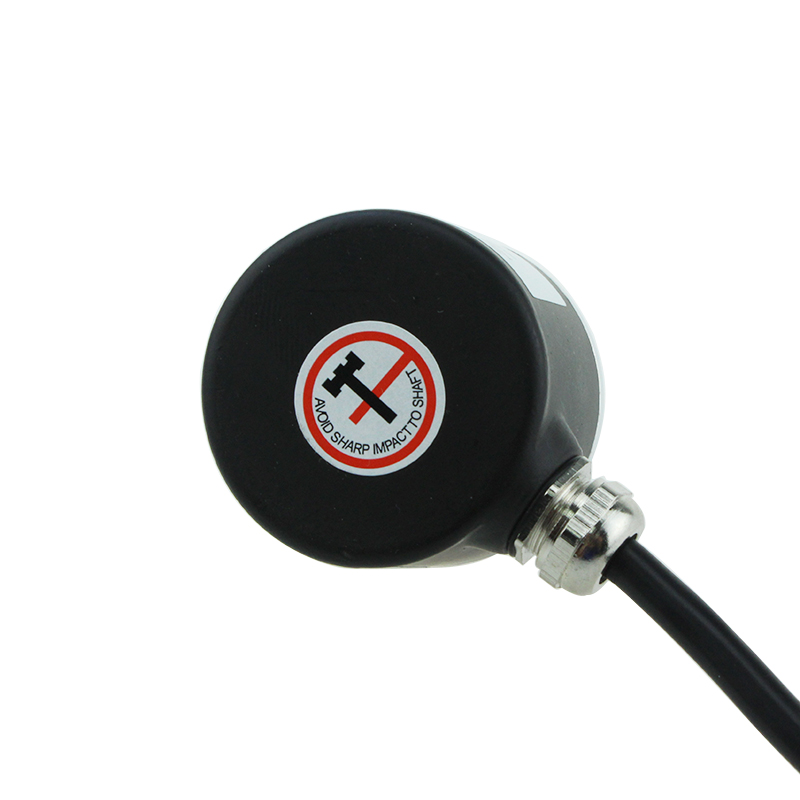

YUMO 38mm Push Pull Output Shaft Incremental Rotary Encoder
ISC3806 Optical Encoder
Shaft diameter 6 mm, clamping flange, housing diameter 38 mm ¦.
Low price at high performance, small volume, light weight, easy for installing
Optical encoder Applications.
Measure the distance, stop dog positioning,
Curtained door, textile machinery
Model:ISC3806-001G-1000BZ-8-24F
Brand:YUMO
Code:YM0000001
online service
Product Description
Shaft diameter 6 mm, clamping flange, housing diameter 38 mm ¦.
Low price at high performance, small volume, light weight, easy for installing
Rotary encoder Applications.
Measure the distance, stop dog positioning,
Curtained door, textile machinery
Technical Specifications
|
Electrical Specification |
||||
|
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
|
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.25 5~30 |
|
Current |
≤80mA |
≤80mA |
≤80mA |
≤150mA |
|
Load current |
40mA |
40mA |
40mA |
60mA |
|
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
|
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
|
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Max Responding Frequency |
200kHz |
200kHz |
200kHz |
200kHz |
|
Mechanical Specification |
||||
|
Max speed(r/min) |
Starting Torque |
Max. Shaft Loading |
Shocking |
Vibration |
|
6000 |
<0.03Nm |
Radial:15N, Axial:10N |
50G/11ms |
10G 10-2000Hz |
|
Rotor Inertia |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
|
4*10-8Kgm2 |
-30~90℃ |
-35~95℃ |
IP51 |
100g |
Connection Table
|
Signal |
A |
B |
Z |
A(-) |
B(-) |
Z(-) |
Vcc |
GND |
|
Color |
Green |
White |
Yellow |
Brown |
Grey |
Orange |
Red |
Black |
Dimensions(mm)
Product Pictures
