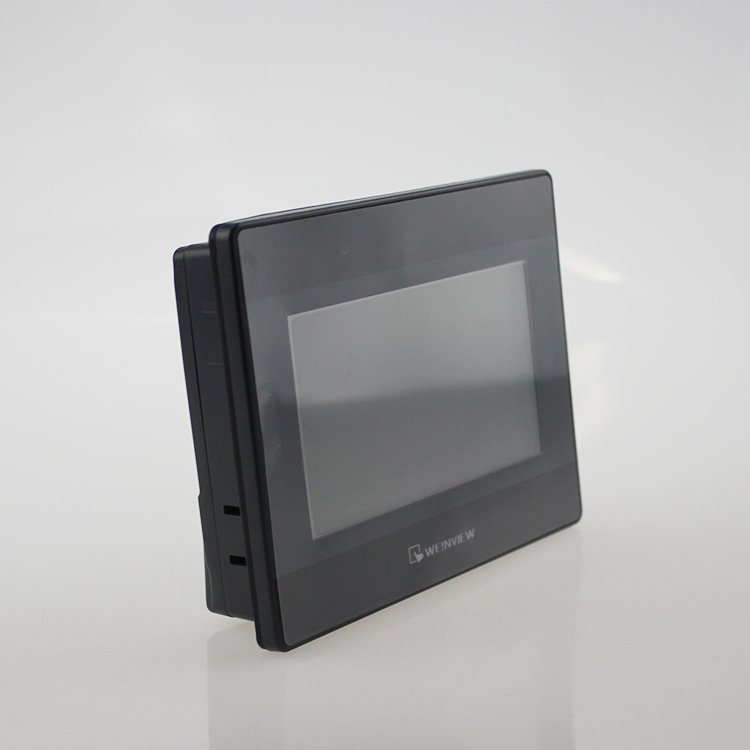

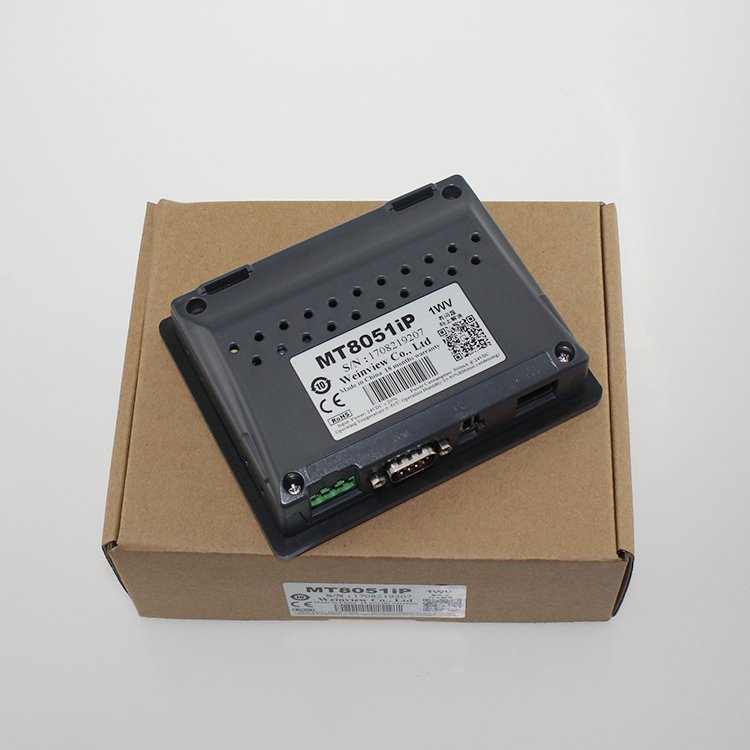

MT8051IP HMI Human machine interface,  4.3" TFT LCD touch screen EasyView PLC





Display

Display
4.3 TFT
Resolution
480 x 272
Brightness (cd/m²)
400
Contrast Ratio
500:01:00
Backlight Type
LED
Backlight Life Time
>30,000 hrs.
Colors
16.7M

Touch Panel
Type
4-wire Resistive Type
Accuracy
Active Area Length(X)±2%, Width(Y)±2%

Memory
Flash
128 MB
RAM
128 MB
Processor

32 bits RISC Cortex-A8 600MHz

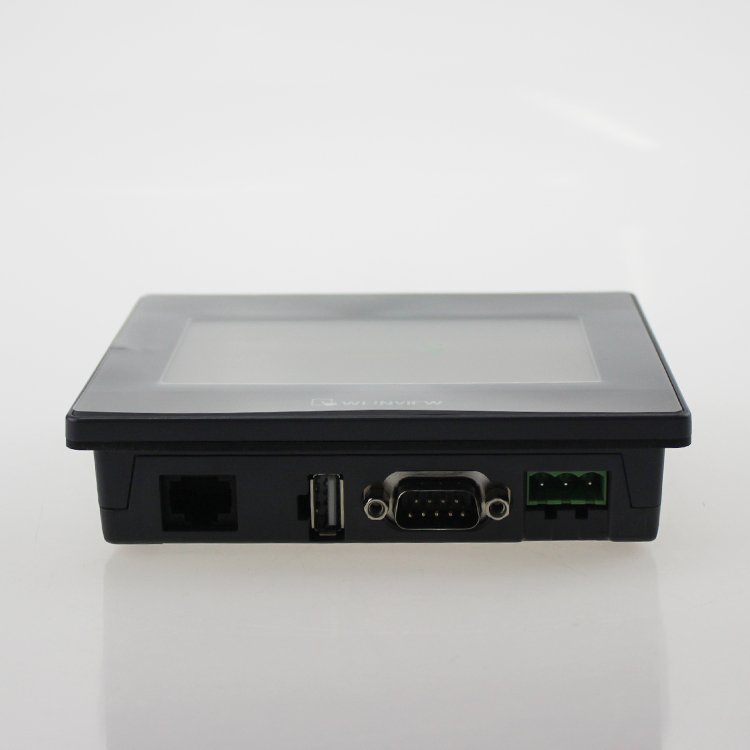

I/O Port
USB Host
USB 2.0 x 1 (Micro USB)
USB Client
N/A
Ethernet
10/100 Base-T x 1
COM Port
COM 1: RS-232/RS-485 2W/4W
COM3: RS-485 2W
RTC

Built-in



Power
Input Power
24±20%VDC
Power Consumption
400mA@24VDC
Power Isolation
Built-in
Voltage Resistance
500VAC (1 min.)
Isolation Resistance
Exceed 50M  at 500VDC
Vibration Endurance
10 to 25Hz (X, Y, Z direction 2G 30 minutes)



Specication
PCB Coating
N/A
Enclosure
Plastic
Dimensions WxHxD
128 x 102 x 32 mm
Panel Cutout
119 x 93 mm
Weight
Approx. 0.25 kg
Mount
Panel mount


Environment
Protection Structure
NEMA4 /IP65 Compliant Front Panel
Storage Temperature
-20° - 60°C (-4° - 140°F)
Operating Temperature
0° - 50°C (32° - 122°F)
Relative Humidity
10% - 90% (non-condensing)
Certficate
CE
CE marked
Software

EasyBuilder Pro
